Nuasol Tiled Roof Assembly Set- Extension Set 1 Module
Special Price £40.99 Regular Price £46.99
*incl. 20% VAT., free delivery
Delivery Time 6-9 working days
IN STOCK
SKU
4252023114684
The preparation

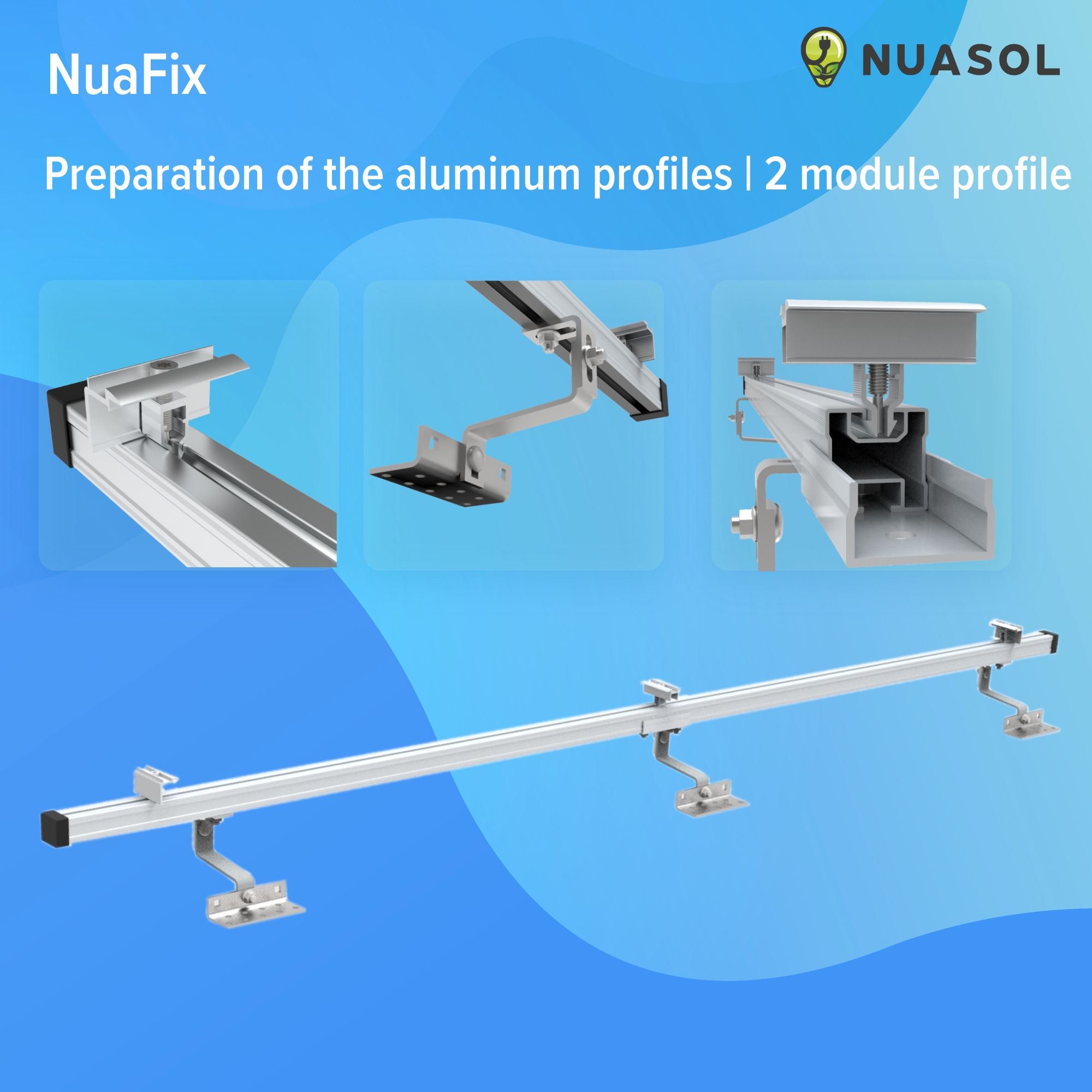

1: Connect the aluminium profiles 2: Fix the roof hooks underneath the profile 3: Push the middle clip above up to the middle 4: Fix the end clips on the ends 5: Set the end caps
Everything included!
The roof bracket set extension allows you to add another solar module to your aluminium profile to save space.
Simple installation
1: Prepare profiles 2: Lift roof tiles 3: Screw on roof hooks 3: Hook in solar modules 4: Tighten middle and end clamps.
Suitable for solar modules with a height of 35 mm!
Details

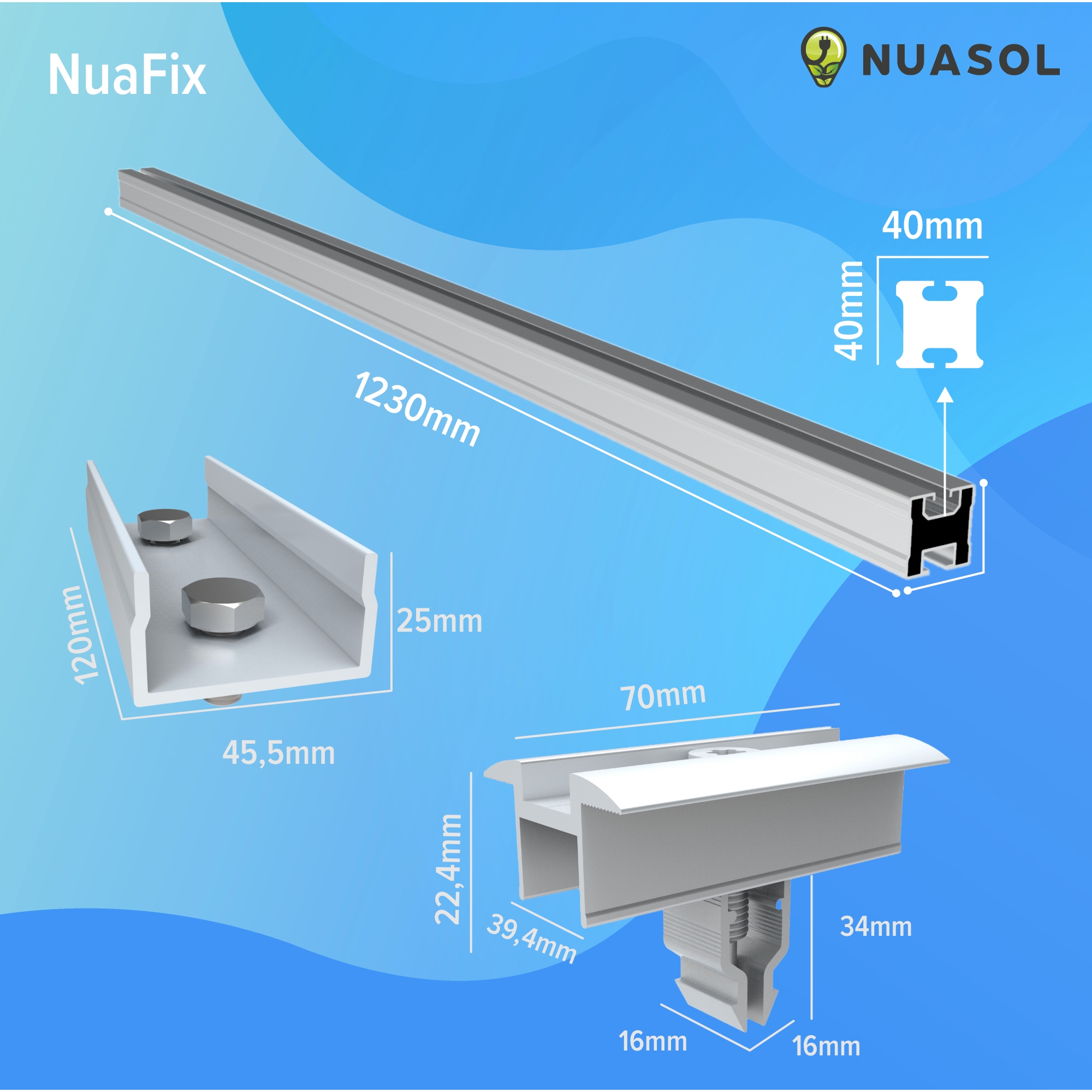

- Dimensions profile single: 1230 x 40 x 40 mm
- Connection: 120 x 45.5 x 25 mm
- Dimensions middle clamp: 70 x 39.4 x 22.4 mm
Screw set
You simply fasten the roof hooks with the stainless steel wood screws under the tiles. The solar module is attached to the aluminium profile with the clamps.
Aluminium profile
The aluminium profile, made of high-quality AL5005-T5, impresses with its weather resistance and provides space for solar panels with a width of up to 1230 mm.
Roof hooks
Our weatherproof stainless steel Z-brackets are completely pre-assembled. Our special roof hooks are suitable for the removal of aluminium rails, profile rails, fastening rails and for holding photovoltaic modules or solar systems.
NuaFix roof hooks in detail
- Material: Stainless steel (SUS 304) | Flat steel hook: 60 x 30 x 5 mm
- Length of hook inside: 115 mm | Dimensions of base plate: 140 x 54 x 5 mm
- Mounting holes: 9 x 9 mm offset | Height adjustment of base plate: 44-47 mm
- Height adjustability flat steel hook: 60-92 mm | Slotted hole measurement: 45 x 11 mm
- Height adjustable overall: 120-160 mm Overall dimensions: 174 x 140 x 120-160 mm | Fitting screw: M10x25 A2 stainless steel
SKU
4252023114684
Base plate dimensions
140 x 54 x 5 mm
Delivery Scope
- Mounting rail 1230mm 2x
- 40x40 rail connector 2x
- Intermediate clamp 2x
- Hexagon head screw 2x
- Flange nut 2x
- Adjustable roof hook 2x (2x L-foot; 2x Z-part; 2x L-joint; 4x carriage bolt M10x25; 4x M10 flange nut)
- Wood screws 6x
Fixing holes
9 x 9mm staggered
Flat steel hook
60 x 30 x 5 mm
Height adjustability flat steel hook
60-92 mm
Height adjustment base plate
44-47 mm
NONE
MIT DEM KAUF DIESER AUKTION VERSICHERN SIE FOLGENDE ANGABEN: DIE BEDINGUNGEN LAUT §12 ABS. § USTG WERDEN ERFÜLLT:
1. ANLAGE UNTER 30 KW PEAK
2. AUF ODER IN DER NÄHE VON PRIVATWOHNUNGEN, PRIVATHÄUSERN, WOHNUNGEN SOWIE ÖFFENTLICHEN UND ANDEREN GEBÄUDEN, DIE FÜR DAS GEMEINWOHL DIENENDE TÄTIGKEITEN GENUTZT WERDEN, GARTENLAUBE, DIE AUCH ZU WOHNZWECKEN GENUTZT WIRD
3. ICH BIN PRIVATPERSON UND BETREIBER DER ANLAGE
4. KEIN GEWERBLICHER WEITERVERKAUF
5. HAFTUNG DES KUNDEN FÜR FALSCHE ANGABEN
6. ALLE ERWORBENEN TEILE WERDEN AUSSCHLIESSLICH IN DER ANLAGE VERBAUT UND SIND WESENTLICHE KOMPONENTEN FÜR DEN BETRIEB DER PV-ANLAGE. WEITERE NACHWEISE ÜBER DEN VERBAU DER ANLAGE KÖNNEN BEI BEDARF VON MIR ERBRACHT WERDEN.
Brand
NuaSol
Model Name
NS-HE-ZDME1
Number of Packages
1
Suitable Substrates
Tiled roof
Dimensions aluminium profile
1230 x 40 x 40 mm
Dimensions profile end clamp
none
Dimensions profile centre clamp
70 x 39,4 x 22,4 mm
Dimensions profile connector
120 x 45,5 x 25 mm
Dimensions profile end cap
none
Product Family
Roof Mounting Kit
