  • Nuasol Photovoltaic Tile Roof Assembly Set- 1 Module
main product photo

Nuasol Photovoltaic Tile Roof Assembly Set- 1 Module

Special Price £51.99 Regular Price £56.99

*incl. 20% VAT., free delivery

|
Delivery Time 6-9 working days
IN STOCK
SKU
4252023114677
UNCOMPLICATED
DELIVERY
DIVERSE
PAYMENT OPTIONS
CONTACT US
VIA LIVE CHAT
CLIMATE NEUTRAL
SHIPPING
Product Image 1

The preparation

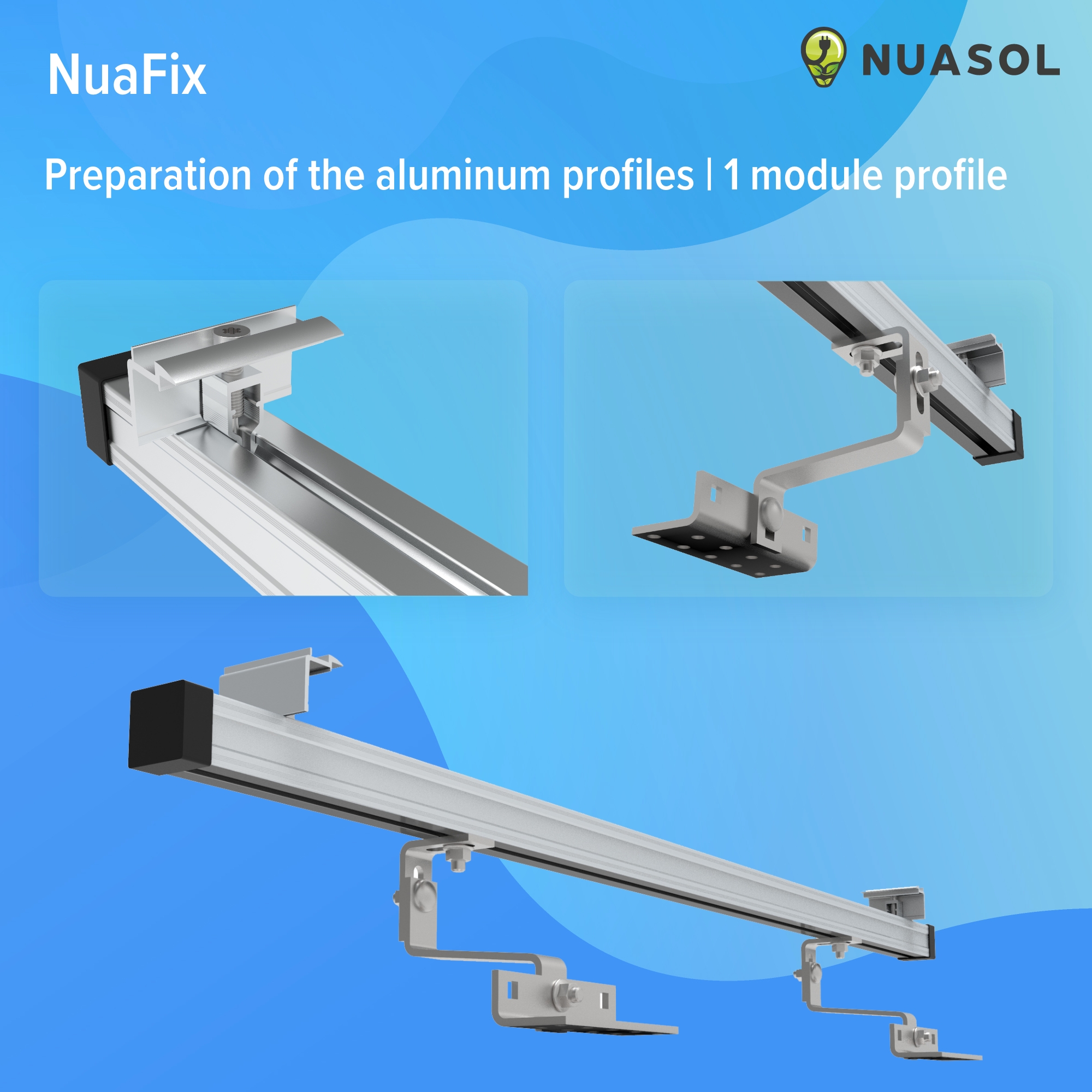

1: Fix the roof hooks underneath the profile 2: Fix the end clips on the ends 3: Set the end caps

Product Image 2

Everything included!
This comprehensive roof mounting set for solar modules contains all the components needed to mount a solar module on the roof of your house.

Product Image 3

Simple installation
1: Prepare profiles 2: Lift roof tiles 3: Screw on roof hooks 3: Hook in solar modules 4: Tighten end clamps.
Suitable for solar modules with a height of 35 mm!

Product Image 4

Details
  • Dimensions profile: 1230 x 40 x 40 mm
  • Dimensions connection: 120 x 45.5 x 25 mm
  • Dimensions end clamp: 70 x 34 x 28.6 mm
  • Dimensions end cap: 43 x 20 x 43 mm

Product Image 5

Screw set
You simply fasten the roof hooks with the 12 stainless steel wood screws under the tiles. The solar module is attached to the aluminium profile with the clamps.

Product Image 6

Aluminium profile
The aluminium profile made of high-quality AL5005-T5 impresses with its weather resistance and provides space for solar panels with a width of up to 1230 mm.

Product Image 7

Roof hooks
Our weatherproof stainless steel Z-brackets are completely pre-assembled. Our special roof hooks are suitable for the removal of aluminium rails, profile rails, fastening rails and for holding photovoltaic modules or solar systems.

Product Image 8

NuaFix roof hooks in detail
  • Material: Stainless steel (SUS 304) | Flat steel hook: 60 x 30 x 5 mm
  • Length of hook inside: 115 mm | Dimensions of base plate: 140 x 54 x 5 mm
  • Mounting holes: 9 x 9 mm offset | Height adjustment of base plate: 44-47 mm
  • Height adjustability flat steel hook: 60-92 mm | Slotted hole measurement: 45 x 11 mm
  • Height adjustable overall: 120-160 mm Overall dimensions: 174 x 140 x 120-160 mm | Fitting screw: M10x25 A2 stainless steel

SKU
4252023114677
Base plate dimensions
140 x 54 x 5 mm
Delivery Scope
  • Mounting rail 1230 mm 2x
  • End clamp 4x
  • Hexagon head screw 4x
  • Flange nut 4x
  • Adjustable roof hook assembly 4x (4x L-base; 4x Z-part; 4x L-joint; 8x carriage bolt M10x25; 8x M10 flange nut)
  • Rail cap 4x
  • Wood screws 12x
Fixing holes
9 x 9mm offset
Flat steel hook
60 x 30 x 5 mm
Height adjustability flat steel hook
60-92 mm
Height adjustment base plate
44-47 mm
NONE

MIT DEM KAUF DIESER AUKTION VERSICHERN SIE FOLGENDE ANGABEN: DIE BEDINGUNGEN LAUT §12 ABS. § USTG WERDEN ERFÜLLT:

1. ANLAGE UNTER 30 KW PEAK

2. AUF ODER IN DER NÄHE VON PRIVATWOHNUNGEN, PRIVATHÄUSERN, WOHNUNGEN SOWIE ÖFFENTLICHEN UND ANDEREN GEBÄUDEN, DIE FÜR DAS GEMEINWOHL DIENENDE TÄTIGKEITEN GENUTZT WERDEN, GARTENLAUBE, DIE AUCH ZU WOHNZWECKEN GENUTZT WIRD

3. ICH BIN PRIVATPERSON UND BETREIBER DER ANLAGE

4. KEIN GEWERBLICHER WEITERVERKAUF

5. HAFTUNG DES KUNDEN FÜR FALSCHE ANGABEN

6. ALLE ERWORBENEN TEILE WERDEN AUSSCHLIESSLICH IN DER ANLAGE VERBAUT UND SIND WESENTLICHE KOMPONENTEN FÜR DEN BETRIEB DER PV-ANLAGE. WEITERE NACHWEISE ÜBER DEN VERBAU DER ANLAGE KÖNNEN BEI BEDARF VON MIR ERBRACHT WERDEN.

Brand
NuaSol
Model Name
NS-HE-ZDM1
Number of Packages
1
Suitable Substrates
Tiled roof
Dimensions aluminium profile
1230 x 40 x 40 mm
Dimensions profile end clamp
70 x 34 x 28,6 mm
Dimensions profile centre clamp
none
Dimensions profile connector
120 x 45,5 x 25 mm
Dimensions profile end cap
43 x 20 x 43 mm
Product Family
Roof Mounting Kit
