NuaSol - Balcony terrain bracket round for one solar module
£49.99
*incl. 20% VAT., free delivery
Delivery Time 6-9 working days
IN STOCK
SKU
4252023111973
Railing bracket option 1 - 25-45

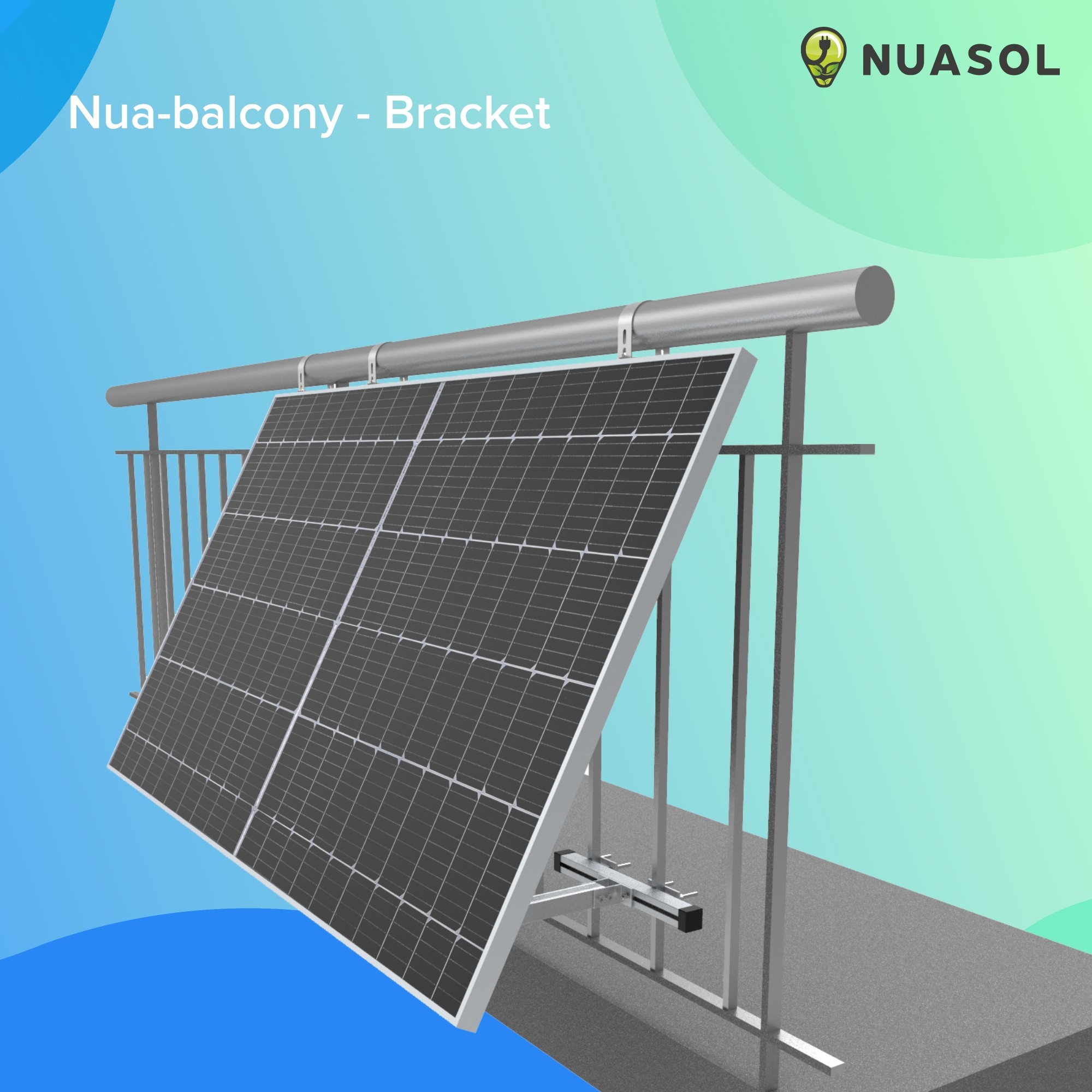

With the adjustable braces, you can attach your solar panels to your railing and choose a tilt angle of 25-45° for perfect alignment.
Terrain bracket option 2 - 0°
With the terrain bracket, you can easily attach a solar panel and your inverter to your balcony railing. With the basic bracket, you can mount your panels parallel to the railing with an angle of inclination of 0°.
Mounting rail
Size of the rail: 35 x 35 x 400 mm
Material of the rail: aluminium AL6005-T5
End cap material: EPDM
Thickness: 1,3 mm
Dimensions of adapter plate: 90 x 30 x 5 mm
Solar panel hook
Size of hook, without connector:102x44x164mm
Maximum diameter of railing:80mm
Suitable for railing type:round railing
Material of hook: 304 stainless steel
Thickness of material: 2mm
Material of base:EPDM
Micro inverter hook
Hook size:102x170x214mm
Maximum diameter of the railing:80mm
Suitable for railing type:round railing
Material of hook: 304 stainless steel
Size of T-plate: 170x90x2mm
Solar panel tilt angle hook
25-45° adjustable strut
Dimensions (long strut) : 35 x 35 x 380 mm
Length adjustable: 380-670 mm
Size incl. base and connector: 105 x 35 x 479 mm
Material: aluminium AL6005-T5
Thickness: 1,5 mm
Dimensions of L-connector:40.6 x 42.75 x 27.2 mm
Dimensions of long base: 105 x 60 x 35 mm
Max. Module width: universal
Adjustable angle: 25-45
0° Base
Dimensions - bracket: 105 x 40 x 35 mm
Material: Aluminium AL6005-T5
Thickness: 4 mm
Highlights
- Click-in design for mounting solar modules, stable
- 25-45 degree & 0 degree mounting
- High flexibility: the angle can be freely adjusted using the telescopic tubes
- High load capacity and strong stability
- High efficiency: ideal for mounting solar panels at an angle on balcony railings
- Compatibility: our PV stand is suitable for solar modules of all sizes
- Easy to install and mount:
- Quick installation with stainless steel fasteners and precise hole placement
- TÜV Süd tested safety, certificate number: Z2 076828 0068 Rev. 00
