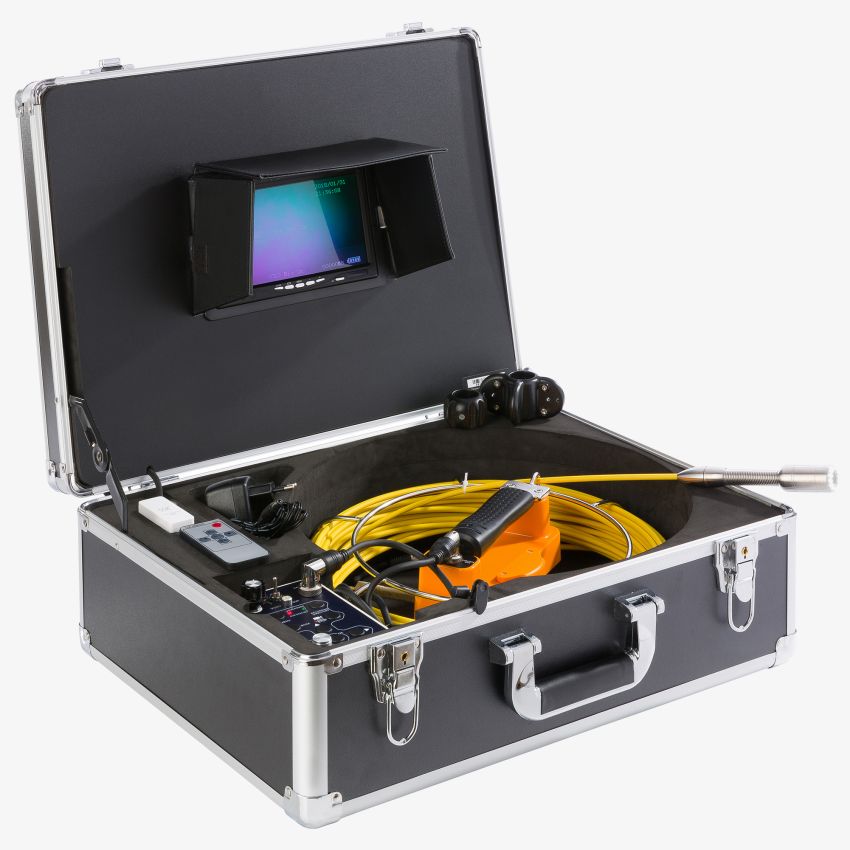

main product photo

Pipe camera with USB

Special Price £394.99 Regular Price £439.99

*incl. 20% VAT., free delivery

|
Delivery Time 6-9 working days
IN STOCK
SKU
4252023101387
UNCOMPLICATED
DELIVERY
DIVERSE
PAYMENT OPTIONS
CONTACT US
VIA LIVE CHAT
CLIMATE NEUTRAL
SHIPPING
Product Image

Storage on USB and SD card
This inspection camera enables simple and flexible storage of videos and images on USB sticks and SD cards with a maximum capacity of 256 GB. This provides sufficient space for extensive inspection recordings and makes data management much easier.

Product Image 2

Rechargeable Li-Ion battery
The powerful 12.6V/4.4Ah Li-Ion battery offers an impressive runtime of over 420 minutes, ideal for longer inspections without frequent recharging. The battery is fully charged in just 5 hours and has a protective voltage of 9.3V, which ensures a long service life and safe use.

Product Image 3

Waterproof camera head
The camera head (model: C-23) is made of robust stainless steel and is waterproof to IP68 standard. With a video resolution of PAL 720 × 576 and a viewing angle of 105°, it delivers sharp and precise images, even in damp and demanding environments. The 12 integrated white LEDs provide excellent illumination in dark areas.

Product Image 4

Versatile control box
The control box (model: K-JY-7-V2) offers a variety of functions, including video recording, photography, audio recording, as well as a digital clock and a digital calendar. It supports the MP4 film format and enables manual switching between AV1 and AV2. The control box also has a 10-stage digital zoom to enable detailed close-ups.

Product Image 5

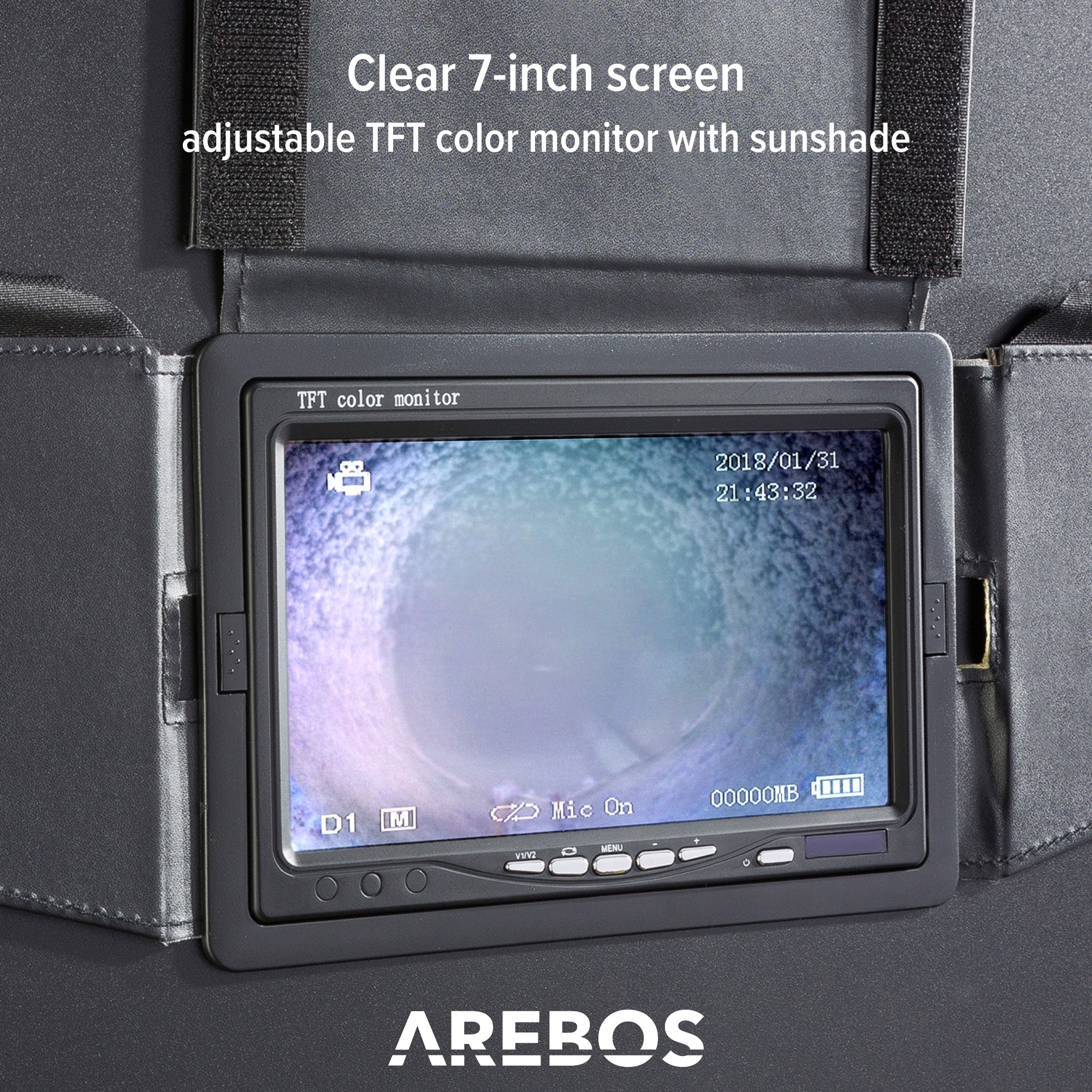

Integrated 7-inch TFT colour monitor
The 7-inch monitor with a resolution of 800 x 600 pixels provides clear and detailed images. It can be adjusted in all directions (up, down, left, right) and has a sunshield to ensure good visibility in bright daylight. The monitor supports both 16:9 and 4:3 display formats.

Product Image 6

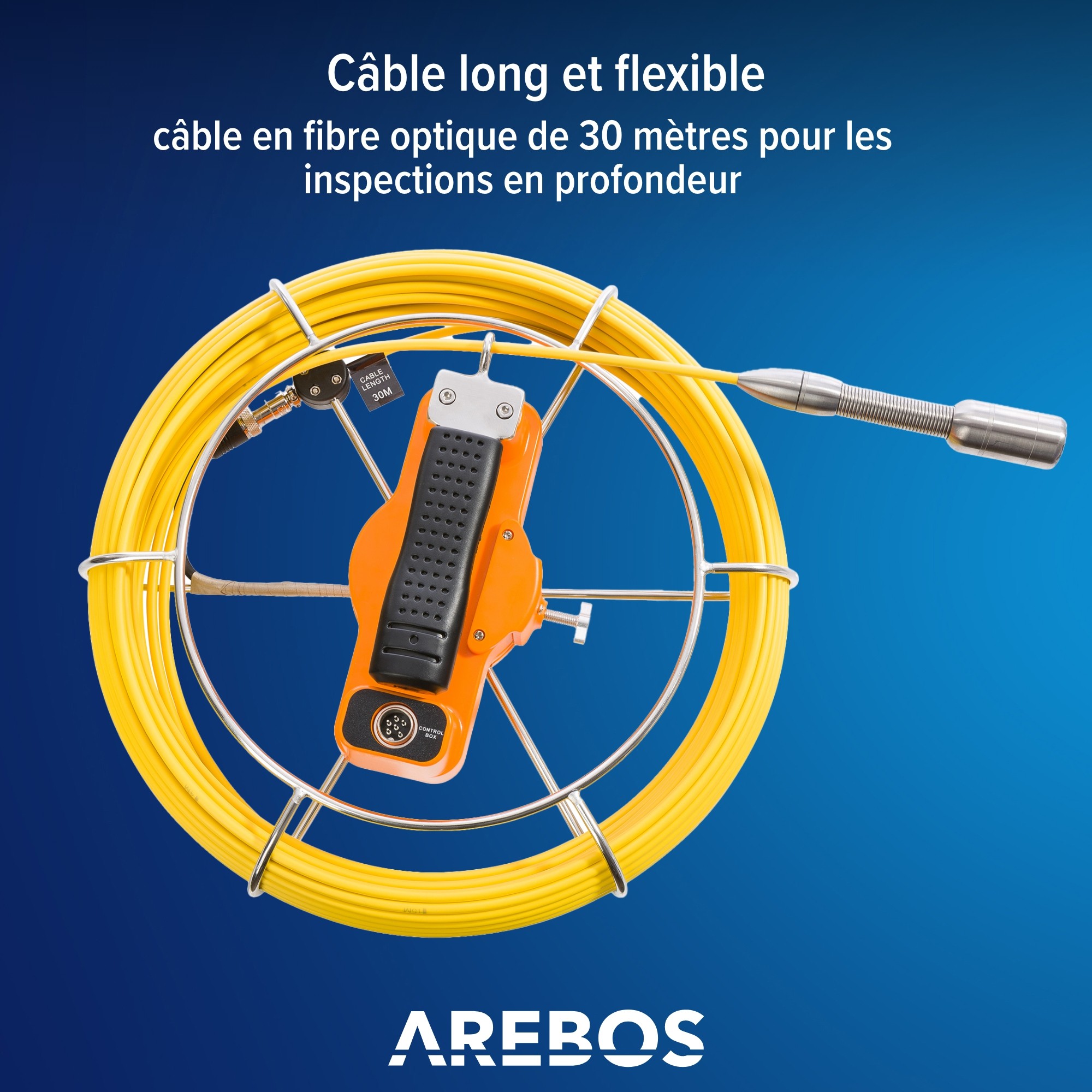

30 metre long-distance cable
The inspection system is equipped with a 30 metre long fibre optic cable, which enables a deep and comprehensive inspection of pipes and ducts. With a diameter of just 0.5 cm, the cable is flexible enough to navigate through tight bends and angles, while being robust enough to withstand tough conditions.

SKU
4252023101387
Weight
2,565.00 kgs
Age Recommendation
18 and above
Delivery Scope
Tube camera with USB
carrying case
Instruction manual
Relevance of Dangerous Goods
No
Equipment
CASE
  • Size (LxWxH): 47.7 x 39 x 18 cm
  • Material: Fireplace plate and aluminium alloy
  • Weight: 3.1 kg
MONITOR
  • Model: P-7DJ
  • Monitor size: 7-inch TFT colour touch display
  • Total pixels: 800 x 600
  • Power supply: DC 12V
  • OSD language: English
  • Up, down, left, right adjustable
  • Ratio mode: 16:9 & 4:3
  • Includes sunshade
  • Weight: 0.3 kg
MICROPHONE
  • Frequency response: 20-20KHz
  • Sensitivity: -30DB±3DB
  • Output impedance: ≤2.2KΩ
  • Cable length: 1.5 m
  • Weight: 0.018 kg
CAMERA HEAD
  • Model: C-23
  • Camera length: ø 2.3 x 12 cm
  • Power supply: DC12V
  • Working current: 100mA
  • Video resolution: PAL 720 x 576
  • Sensor size: 1/4 inch
  • Viewing angle: 105°
  • Focusing distance: 2~8cm
  • Shell material: 304# stainless steel
  • Waterproof: IP68
  • Weight: 0.2kg
  • Adjustable camera light: 12x LED (white)
CABLE
  • Model: X-15J (30M)
  • Cable size: ø 33 x 11 cm
  • Cable material: Fibreglass rod
  • Cable length: 30 m
  • Cable diameter: ø 0.5 cm
  • Weight: 1.72 kg
SKID
  • Model: S23-40/S23-80
  • Skid size
  • Skid 1: ø 4 cm
  • Skid 2: ø 8 cm
  • Weight: 0,08 kg
CONTROL BOX
  • Model: K-JY-7-V2 Power supply: 12V
  • Working current: 200mA
  • Total pixels: 720 x 576
  • Film format: MP4
  • Main function: Video, photo, audio, audio digital clock and digital calendar
  • Manual switching function AV1 and AV2
  • 10 steps
  • Digital zoom
  • Weight: 0.48 kg
LI-ION BATTERY
  • Model: 18650-12.6V/4.4Ah
  • Total power: 14W
  • Charging time: 5 hours
  • Protection voltage: 9.3V
  • Capacity: 4400mAh
  • Voltage: 12.6V
  • Running time: ≥420 minutes
  • Rechargeable battery pack
  • Weight: 0.26 kg
CHARGER
  • Input: AC100-240V50/60Hz AC100-240 V
  • 50/60 Hz Output: Direct current 12.6V/1000mA
  • DC plug diameter: 0.21 cm
  • Weight: 0.1kg
CONNECTION
  • Size: ø 5 x 1500 mm
  • GX16-6-6 Elbow air head
  • Weight: 0.10 kg
USB CARD & SD CARD
  • Storage medium: 8G SD card (max. 256 G)
  • USB stick function (max. 256 G)
Protection Class
Class 2
Set Includes
Complet-Set
Special Features
  • Flexible data storage: Store data on USB sticks and SD cards
  • High-resolution monitor: Clear, adjustable 7-inch monitor with sunshield
  • Robust camera head: Waterproof camera head with LEDs
  • Long inspection cable: Flexible, robust 30 metre fibre optic cable
  • Powerful battery: Over 420 minutes of runtime, quickly rechargeable
  • Control box: Video, photo, audio, digital clock, calendar
  • High video resolution: Sharp PAL 720 x 576 resolution
  • 105° viewing angle: Wide viewing angle for a comprehensive view
  • Lightweight monitor: Only 0.3 kg, easy to handle
  • Lockable case: Safe transport in robust case
Suitability Area
Suitable for Indoor and Outdoor
Timer
No
Battery Capacity
4400 mAh
Brand
Arebos
Cable Length
30 m
Camera Diamater
23 mm
Camera Pixels
Pixels:800*480
Camera Size
120 mm
Dimensions Case
L477*W180* H390 mm
Lens
sapphire lens
Material
Stainless Steel
Model Name
AR-HE-RK710USB
Number HDMI Connections
1
Number Memory Card Slots
1
Number of Packages
1
Number Screens
1
Optical Zoom Factor
10 level digital zoom
IP Protection Class
IP68
Recording Formats
MP4 and JPEG
Recording Time
7 h
Resolution Photo in Megapixels
PAL 720 x 576
Resolution Video in Megapixels
PAL 720 x 576
Screen Diagonal Inches
7inch color TFT monitor
Specification of the Component
  • Camera size: ø23*120mm
  • Battery capacity: 4400mAh
  • Case size (LxWxHX): 477x180x390 mm
  • Protection class: IP68
  • Recording time: 7 hours
  • Cable length: 30 m
  • Camera pixels: PAL 720 x 576
  • Lens: Sapphire lens
  • Monitor: 7inch color TFT monitor (Pixel:800x600)
  • Memory: 256 GB SD card und USB Stick
  • supported file formats: MP4 und JPEG
Storage Space
256GB
Supported File Formats
256 GB SD card and USB stick
Temperature Max.
70 °C
Temperature Min.
-20 °C
Type of Power Plug
UK PLUG TYP G
Type of Power Supply
Mains Connection
USB Port
Yes
Product Family
Pipe Camera
