NuaSol - Adjustable Solar Panel Mount 1180mm - Silver
*incl. 20 % VAT., free delivery
Delivery Time 6-9 working days
IN STOCK
SKU
4252023111508

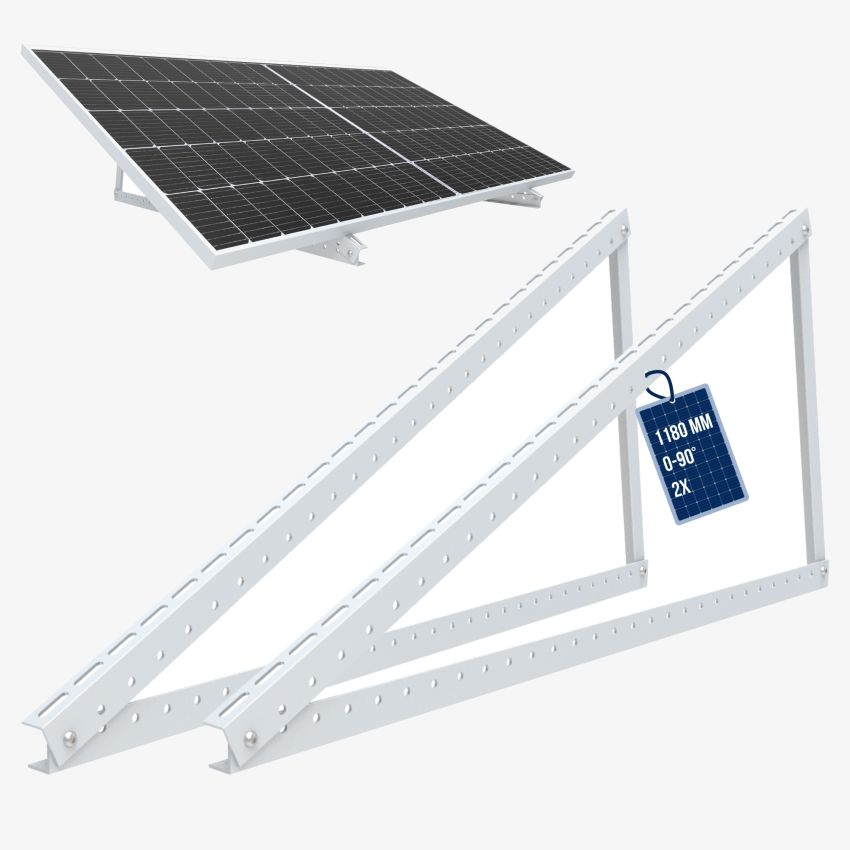

Triangular Solar Panel Mounts 0-90°
Made from AL6005-T5 aluminium, our weatherproof adjustable PV system brackets are easy to attach to the solar panel, so your solar system is ready to go in no time.
Stainless steel screws and nuts
SUS304 are already included in the delivery. Our adjustable brackets are suitable for set-ups on flat surfaces such as garages, gardens, balconies... . Convenient adjustment of the tilt angle to harvest the maximum yield.
- NuaFix - Flexible brackets 0-90°.

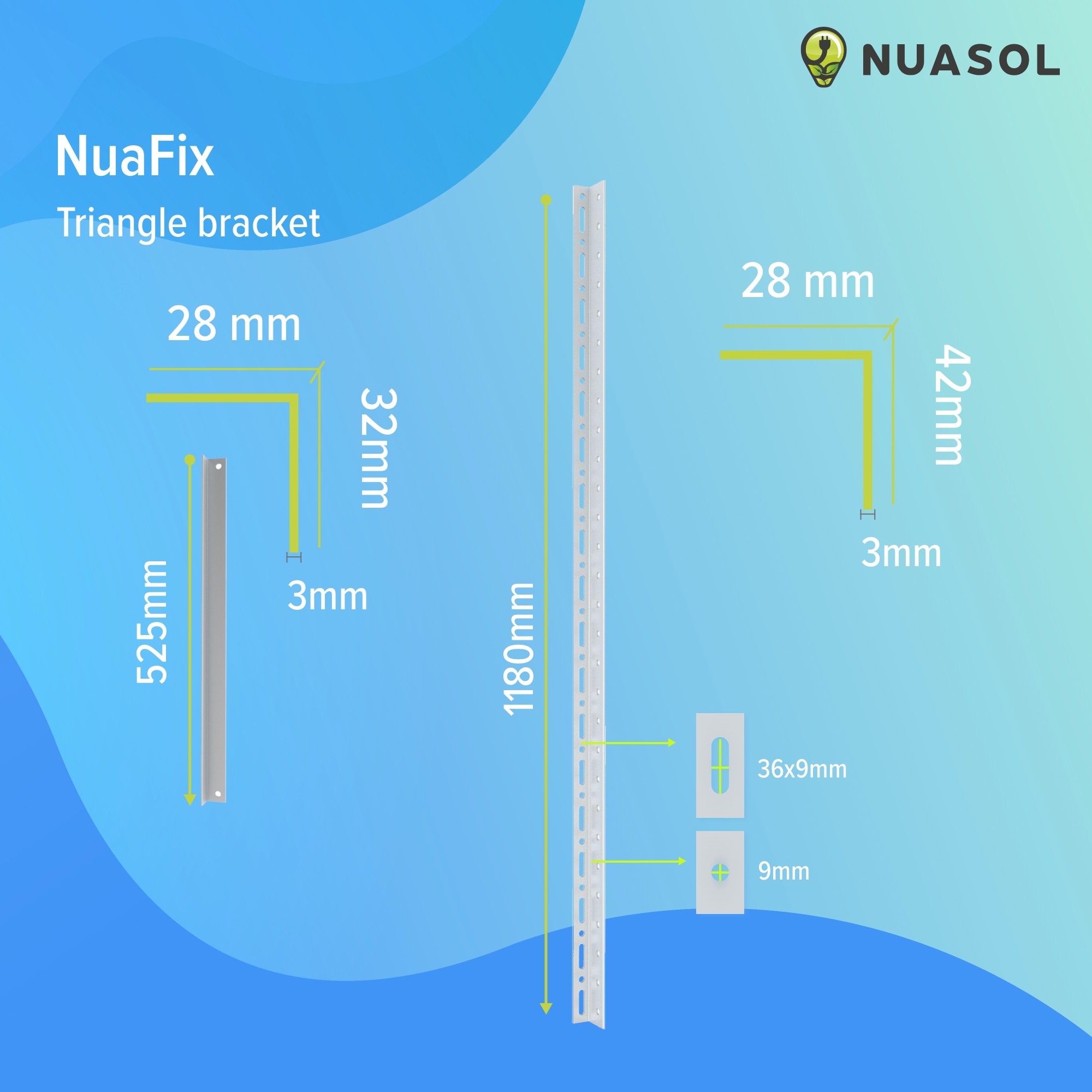

- Dimensions strut (WxDxH): 28 x 42x 3 mm
- Length cross brace: 525 mm
- Max. Solar module width: 1180 mm
- Material thickness: 3 mm
- Dimensions of mounting holes: 9 mm / 36 x 9 mm
- Material bracket: Aluminium AL6005-T5
- Material screws & nuts: stainless steel SUS304
- Suitable for: flat substrates
- Angle: 0-90
- Weight: 2.89 kg
Brand
NuaSol
SKU
4252023111508
Weight
2,866.00 kgs
Color
Silver

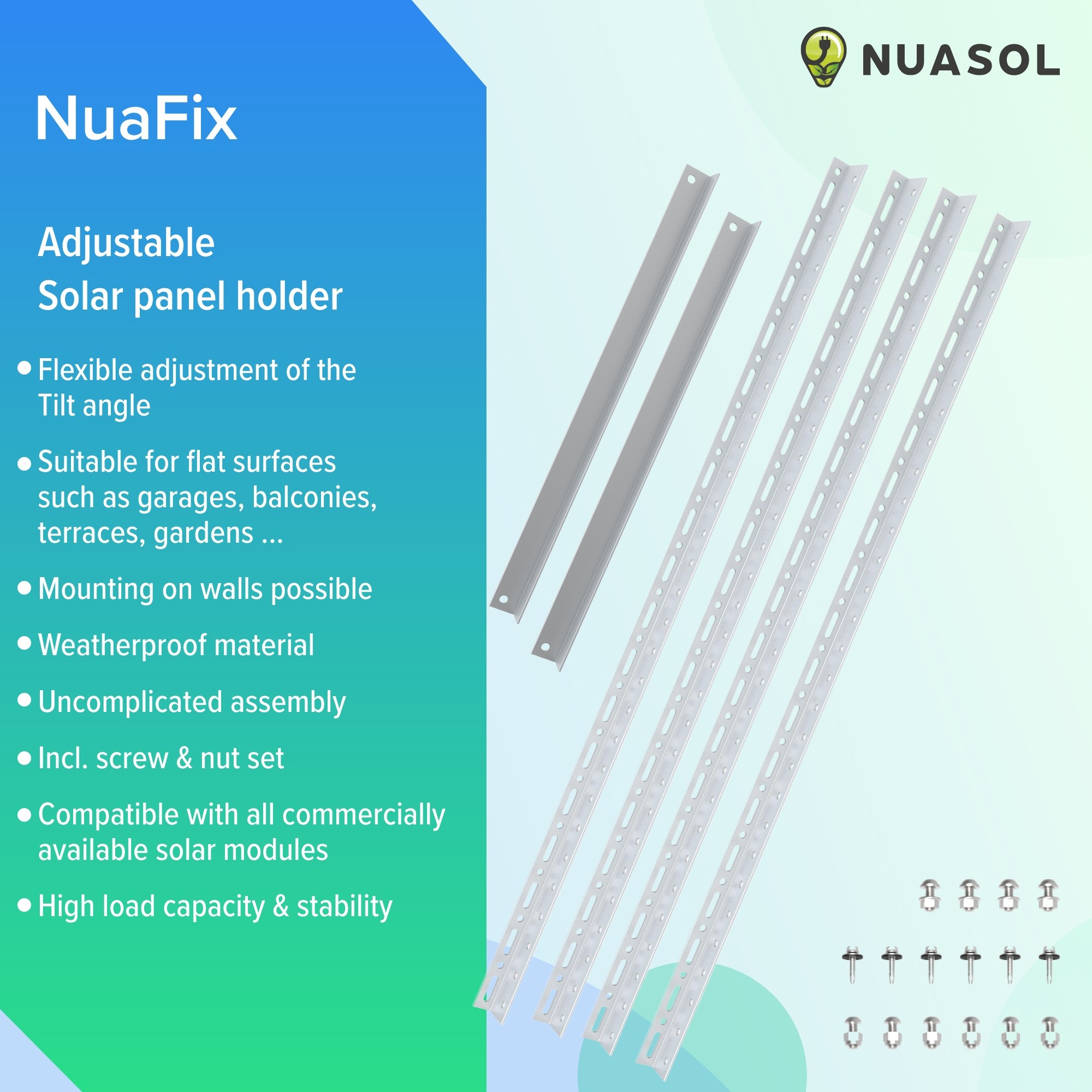

Delivery Scope
- 4x long struts
- 2x short struts
- 1x screw set
Material screws
Stainless steel SUS304
Dimensions long pole
28 x 42x 3 mm
Max. Panel width
1180mm
Hole size
9 mm / 36 x 9 mm
Angle Adjustment
0-90°
Material Mounting Stand
Aluminium AL6005-T5
Model Name
NS-HE-AHT118
Number of Packages
1
Suitable Substrates
flat substrates
Product Family
Solar panel bracket
