Nuasol - Adjustable bracket 30° - 60° silver
*incl. 20 % VAT., free delivery
Delivery Time 6-9 working days
IN STOCK
SKU
4252023116787
Made from AL6005-T5 aluminium, our weatherproof adjustable PV system brackets are easy to attach to the solar panel, so your solar system is ready to go in no time. SUS304 stainless steel bolts and nuts are included.
Our adjustable brackets are suitable for set-ups on flat surfaces such as garages, gardens, balconies... . Convenient adjustment of the tilt angle to harvest the maximum yield.

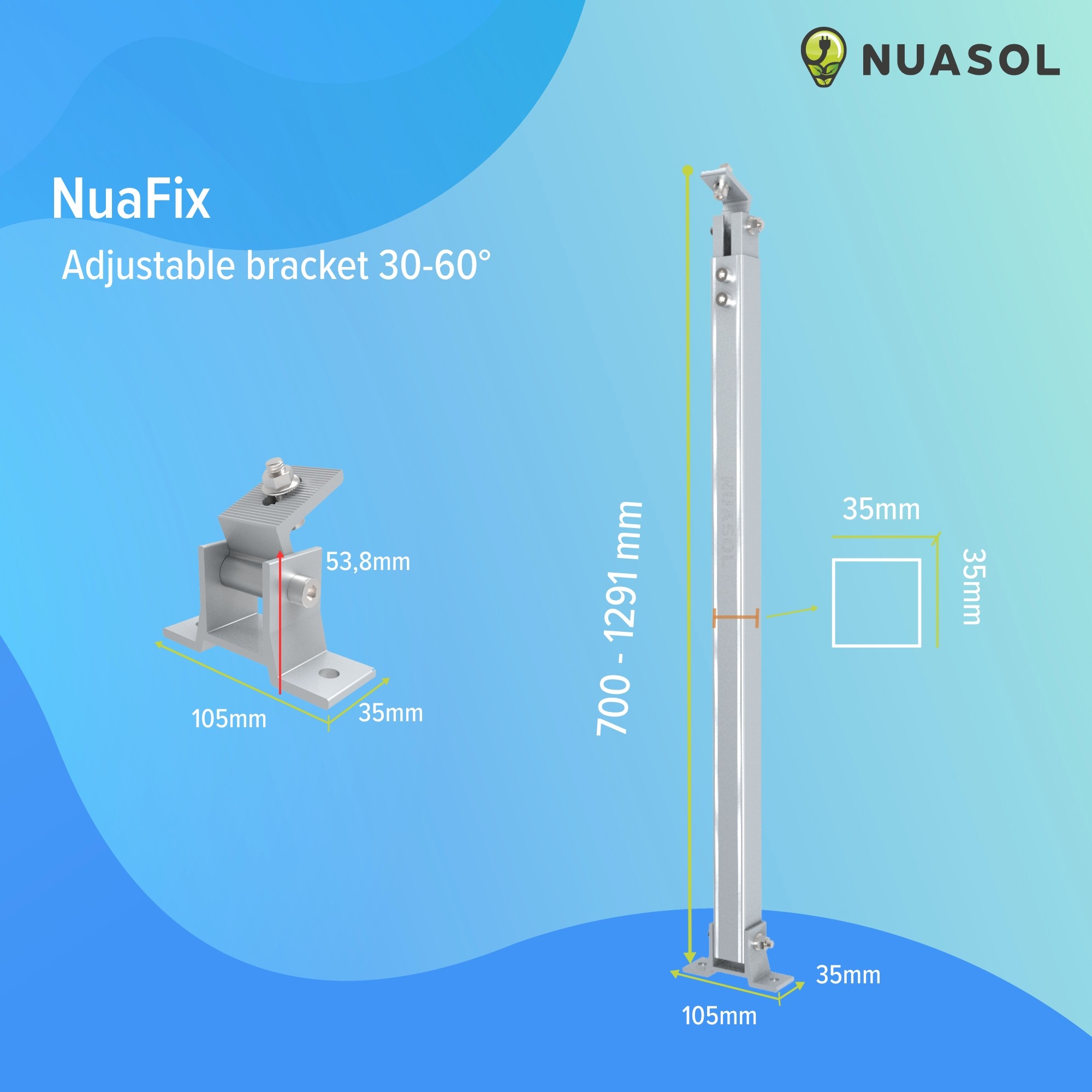

- Dimensions long piece closed: 35 x 35x 660 mm
- Adjustable length: 700 - 1291 mm
- Material thickness: 1,5 mm
- Mounting piece dimensions: 105 x 35 x 53.8 mm
- Rubber pad: 30x35x2 mm
- Screws: M8x60
- Material bracket: Aluminium AL6005-T5
- Material screws & nuts: stainless steel SUS304
- Angle: 30 - 60°
- Suitable for: flat surfaces
Brand
NuaSol
SKU
4252023116787
Weight
2,685.00 kgs
Color
Silver

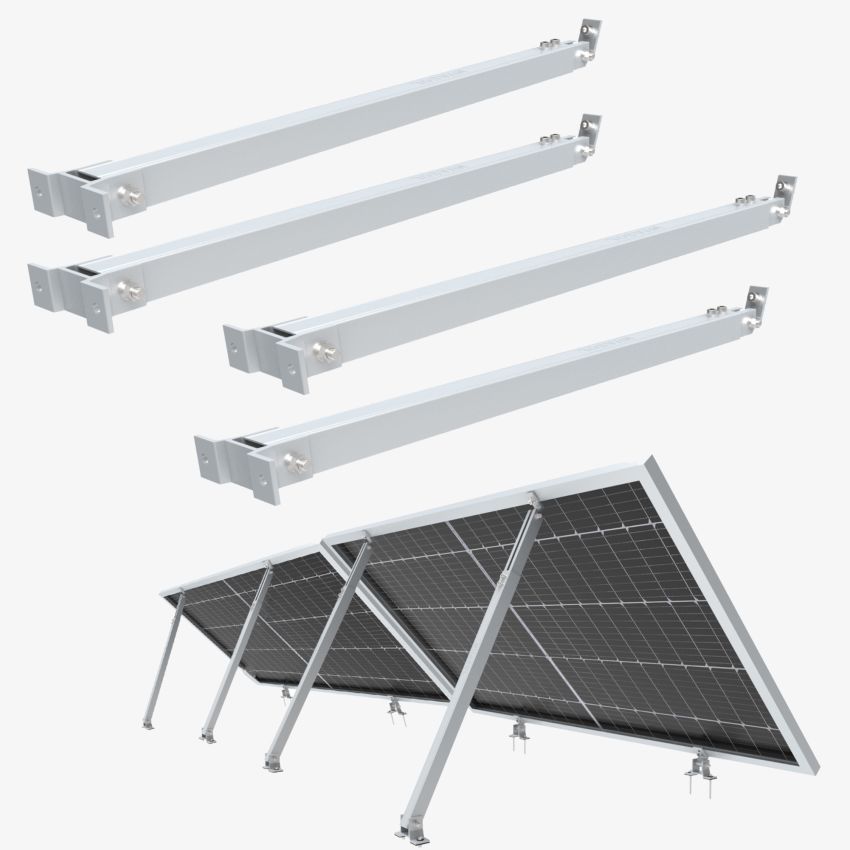

Delivery Scope
- 4x Long bracket
- 4x Short bracket
- 16x EPDM support
- 2x Screw Set
Material screws
Stainless steel SUS304
Adjustable lenght
700 - 1291 mm
Dimensions bracket
105 x 35 x 53.8 mm
Dimensions long pole
35 x 35 x 660 mm
Dimension rubber pad
30 x 35 x 2 mm
Screw size
M8x60
Angle Adjustment
30 - 60°
Material Mounting Stand
Aluminium
Model Name
NS-HE-AH602X
Number of Packages
2
Suitable Substrates
flat substrates
Product Family
Solar panel bracket
