NuaSol - Adjustable bracket 15-30° degrees - Black
*incl. 20 % VAT., free delivery
Delivery Time 6-9 working days
IN STOCK
SKU
4252023111478
Made from AL6005-T5 aluminium, our weatherproof adjustable PV system brackets are easy to attach to the solar panel, so your solar system is ready to go in no time. SUS304 stainless steel bolts and nuts are included.
Our adjustable brackets are suitable for set-ups on flat surfaces such as garages, gardens, balconies... . Convenient adjustment of the tilt angle to harvest the maximum yield.

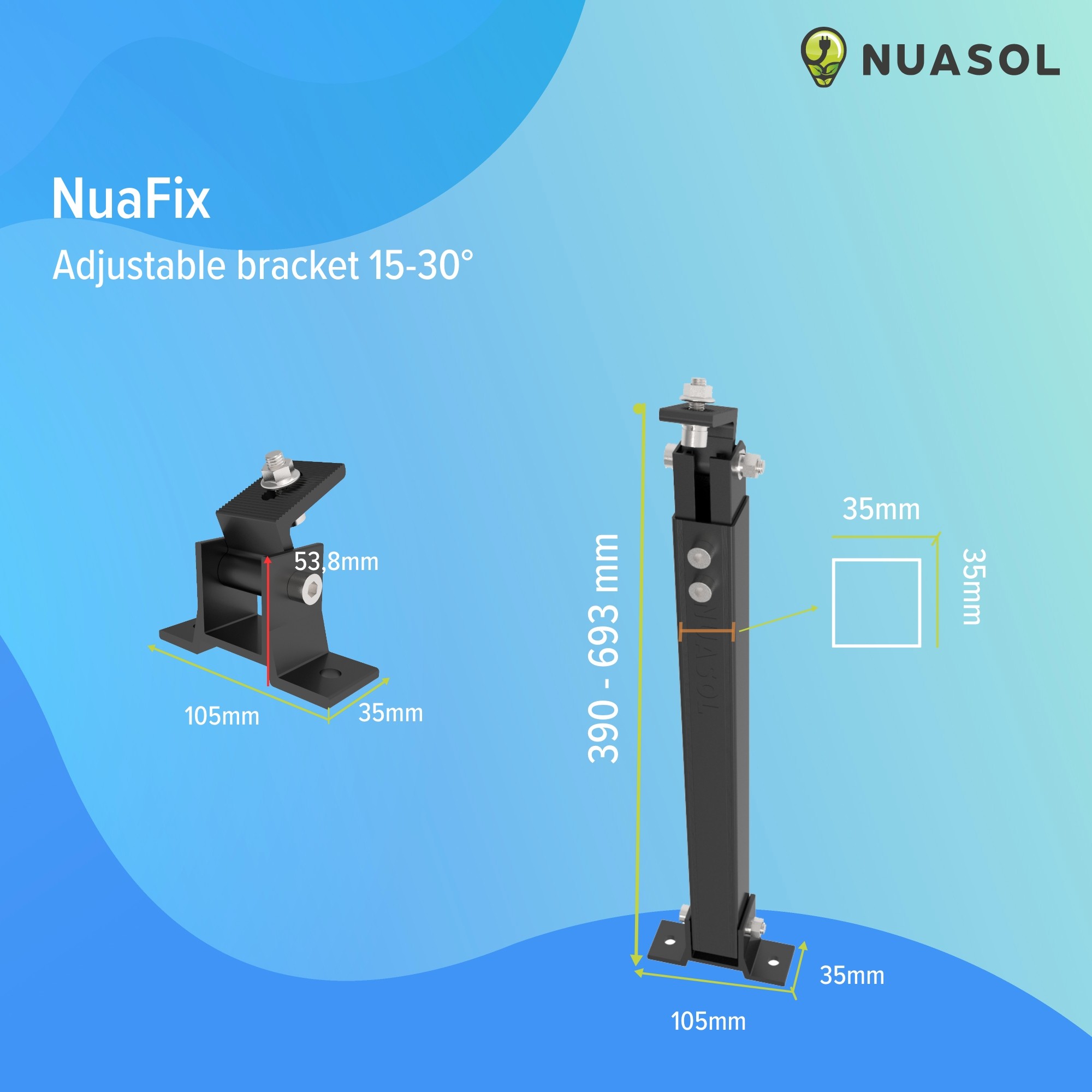

- Dimensions long piece closed: 35 x 35x 360 mm
- Adjustable length: 390-693 mm
- Material thickness: 1,5 mm
- Mounting piece dimensions: 105 x 35 x 53.8 mm
- Rubber pad: 30 x 35 x 2 mm
- Screws: M8x60
- Material bracket: Aluminium AL6005-T5
- Material screws & nuts: stainless steel SUS304
- Angle: 15-30°
- Suitable for: flat surfaces
Brand
NuaSol
SKU
4252023111478
Weight
2,863.00 kgs
Color
Black

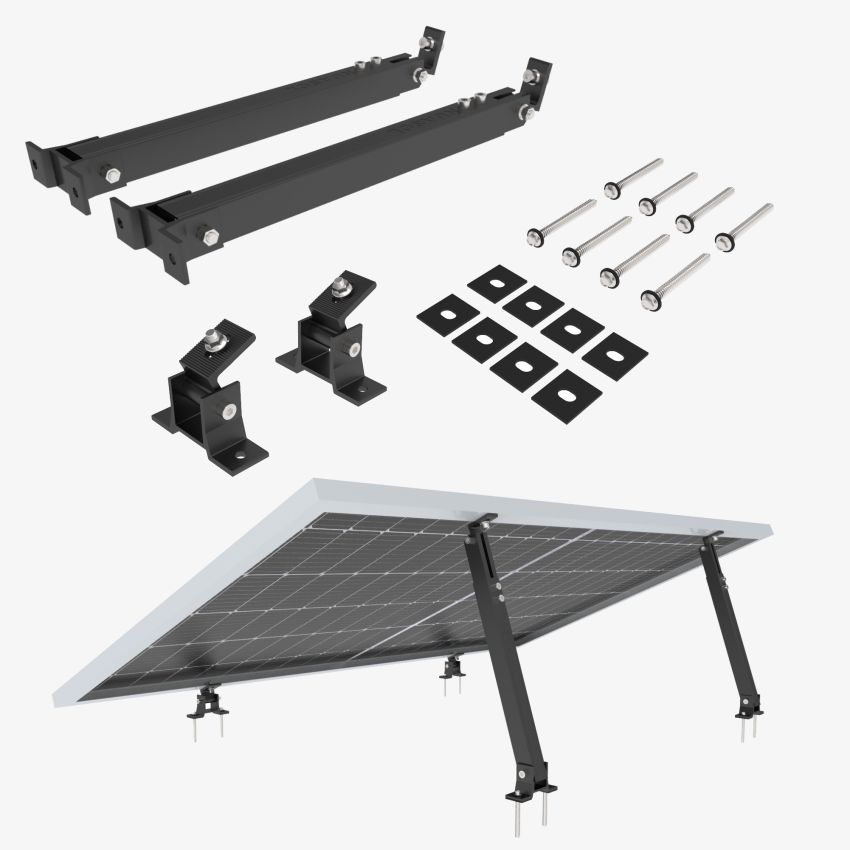

Delivery Scope
- 2x long strut & bracket
- 2x bracket
- 8x EPDM support
- 1x screw set
Material screws
Stainless steel SUS304
Adjustable lenght
390 - 693 mm
Dimensions bracket
105x35x53.8 mm
Dimensions long pole
35 x 35x 360mm
Dimension rubber pad
30 x 35 x 2 mm
Screw size
M8x60
Angle Adjustment
15-30°
Material Mounting Stand
Aluminium AL6005-T5
Model Name
NS-HE-AH30B
Number of Packages
1
Suitable Substrates
flat substrates
Product Family
Solar panel bracket
