The preparation
1: Attach short profiles
2: Attach end clamps to the ends of the profile
3: Insert solar modules
4: Tighten end clamps
Everything included!
This comprehensive trapezoidal sheet metal roof mounting set for solar modules contains all the components needed to mount a solar module on the sheet metal roof.
Simple installation
1: Prepare profiles
2: Hook in solar modules
3: Tighten end clamps
Suitable for solar modules with a height of 30 and 35 mm!
Details
- Profile dimensions: 400 x 75 x 26.5 mm
- End clamp dimensions: 70 x 35 x 54.3 mm
- Centre clamp dimensions: 70 x 39.4 x 49 mm
- Dimensions of screws: 5.5 x 25

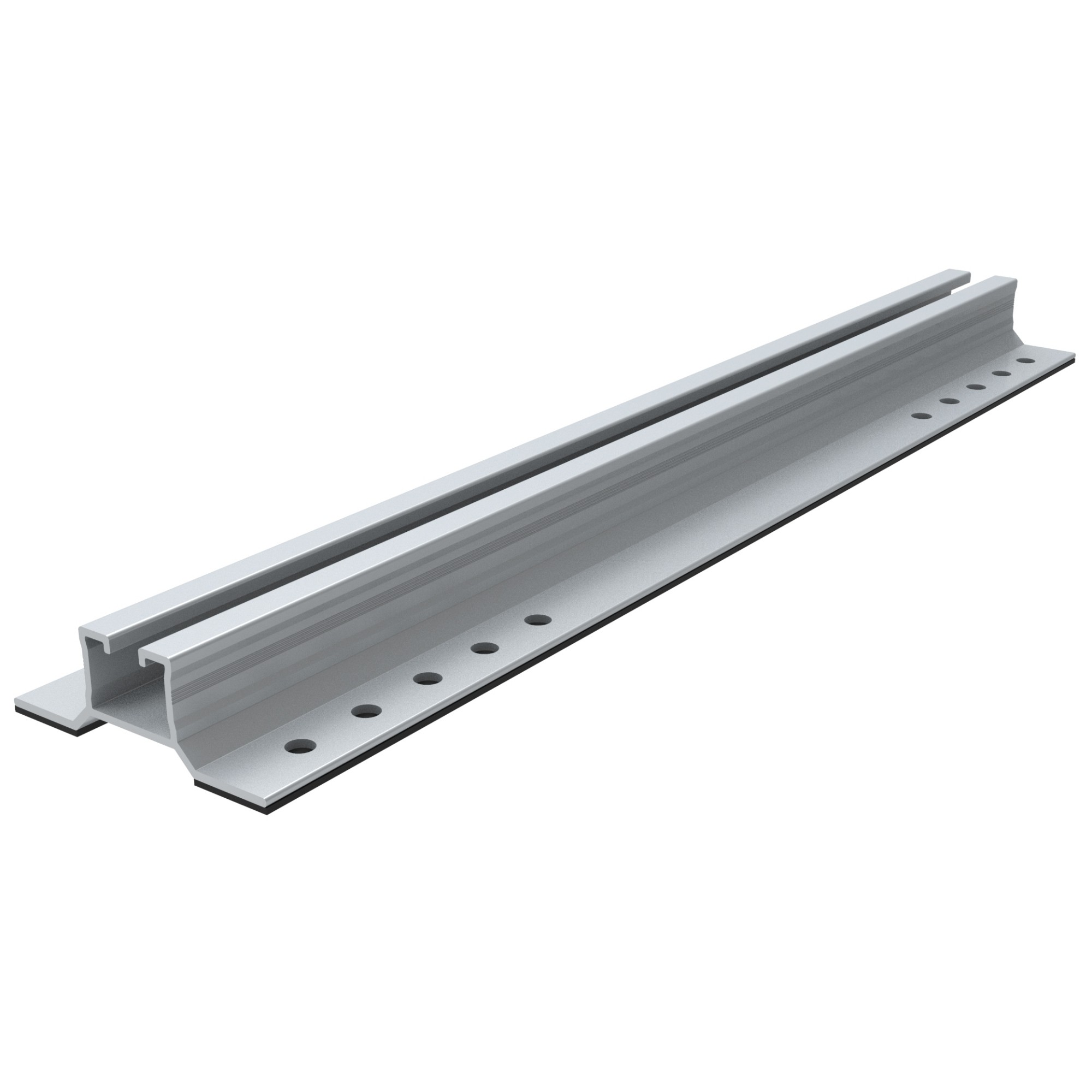

Aluminium profile
The aluminium profile made of high-quality AL6005-T5 impresses with its weather resistance and offers space for a variety of solar panel types. EDPM underlays are located underneath the profile.

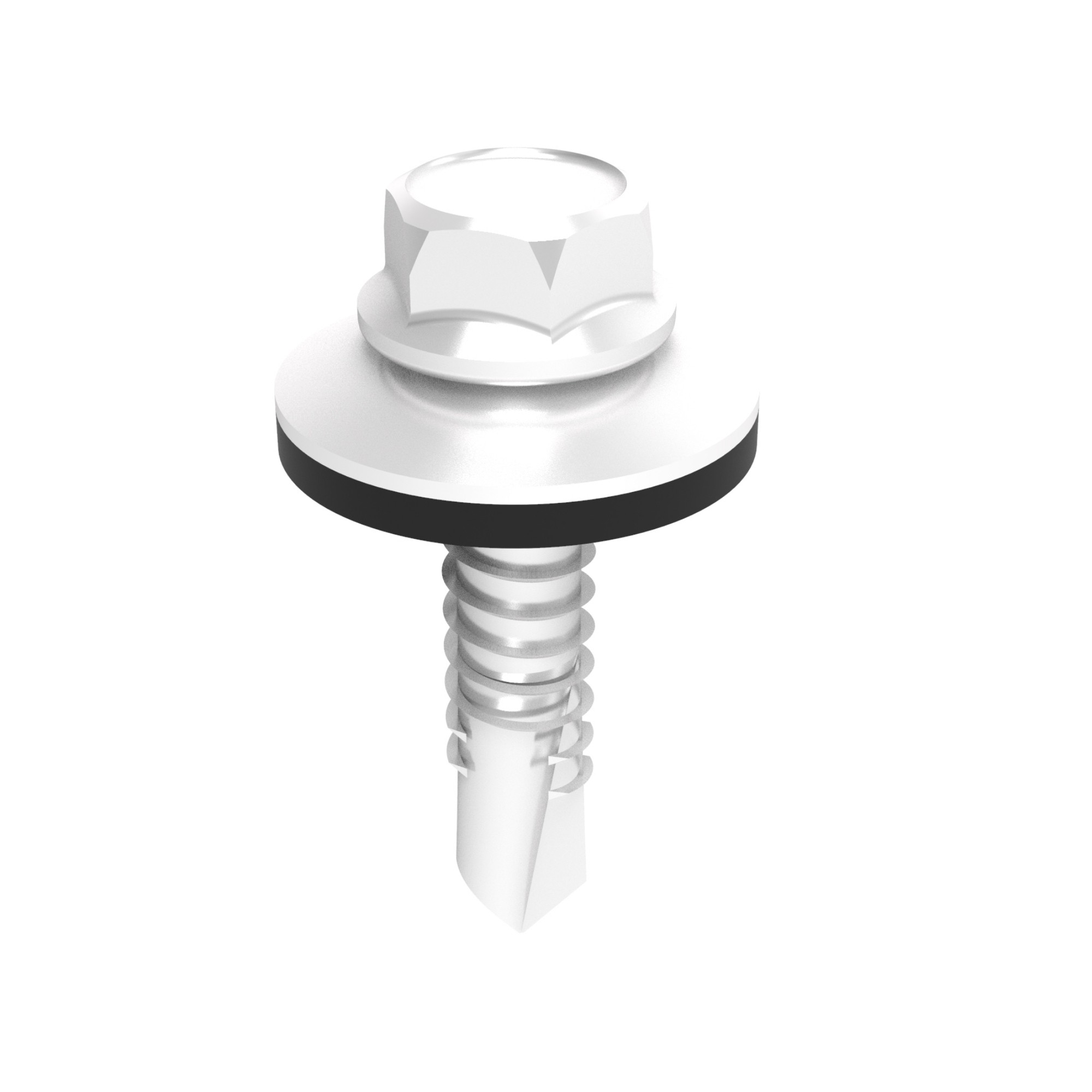

Screw set
You can easily fasten the aluminium profiles to the trapezoidal sheet metal roof using the 24 stainless steel wood screws. The screws have an EDPM seal underneath the head to prevent water from running into the sheet metal roof.

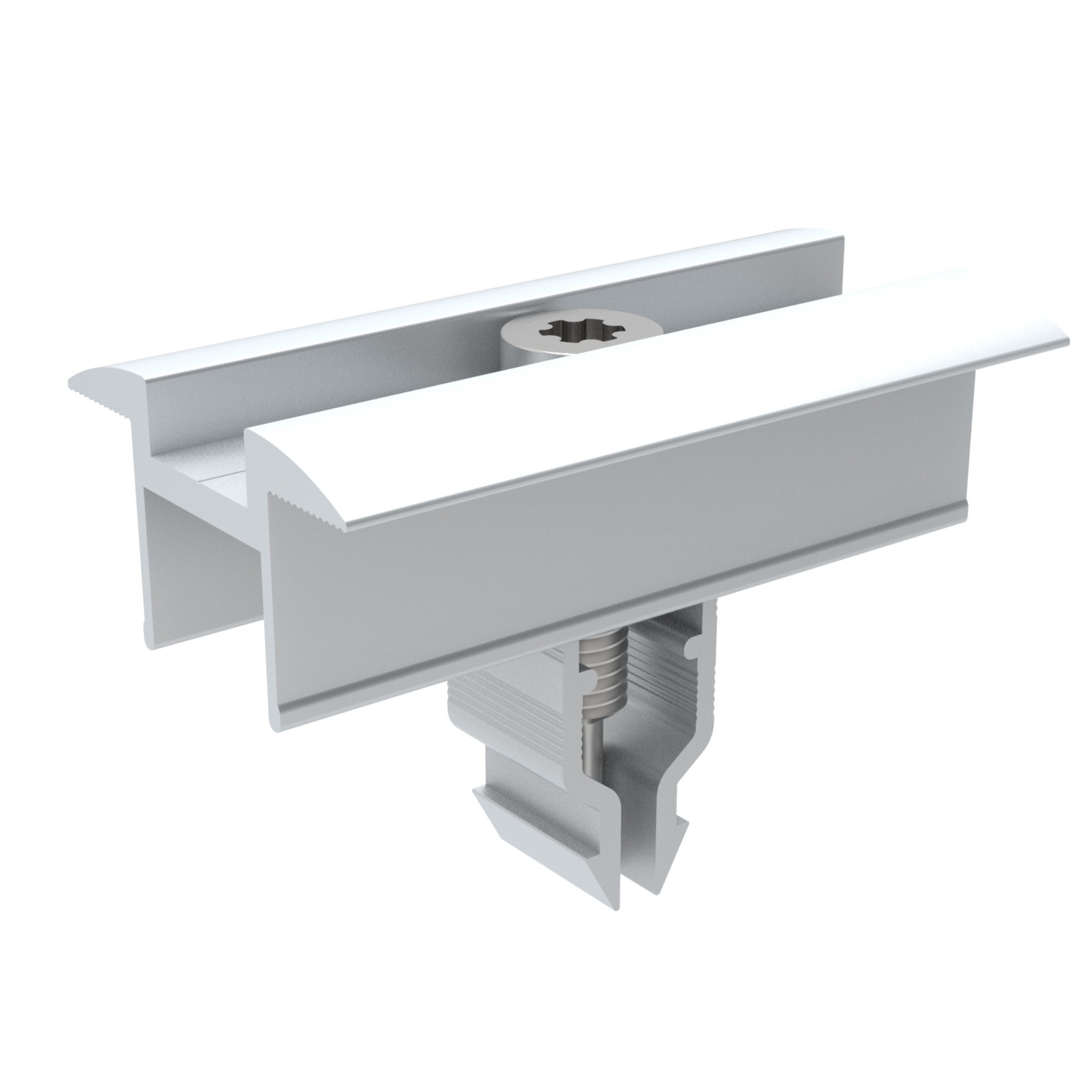

End & centre clamp
The end & middle clamps made of aluminium AL6005-T5 fix the solar module to the aluminium profile. Slide the end & centre clamps into the rail, screw tight, done!

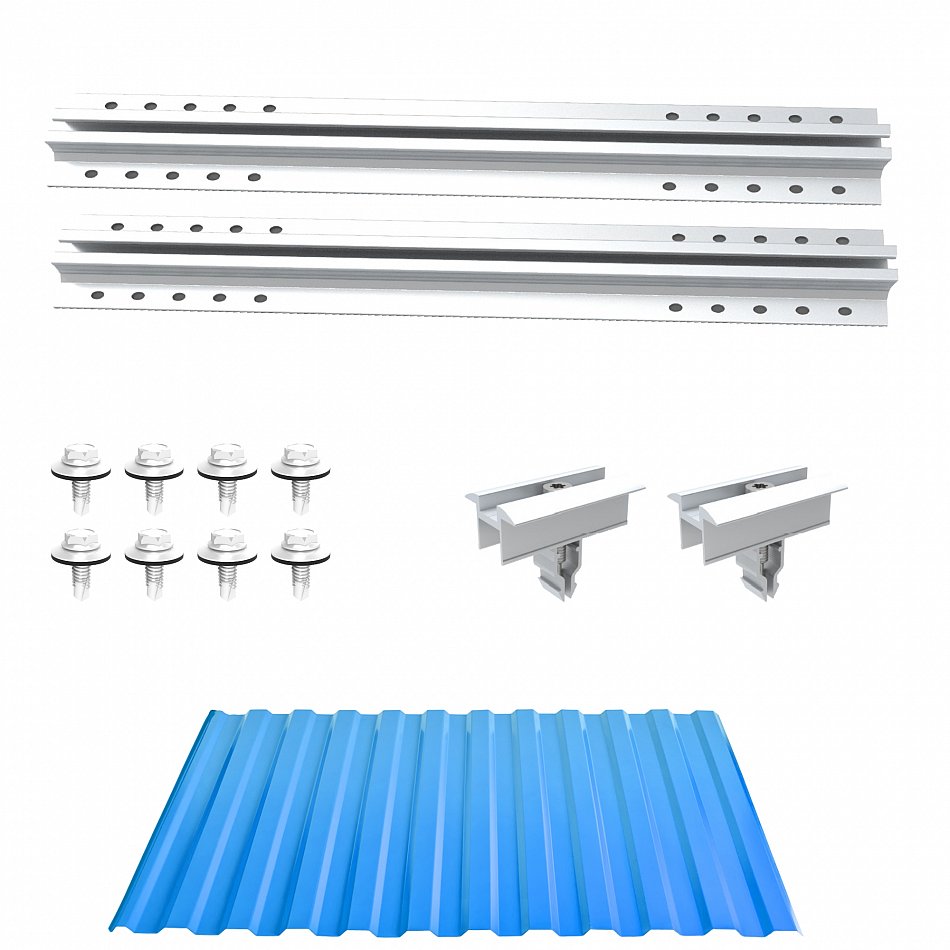

Practical extension set
Expand your PV system easily with the NuaSol extension set.
Brand
NuaSol
SKU
4252023116183
Weight
2.57 kgs

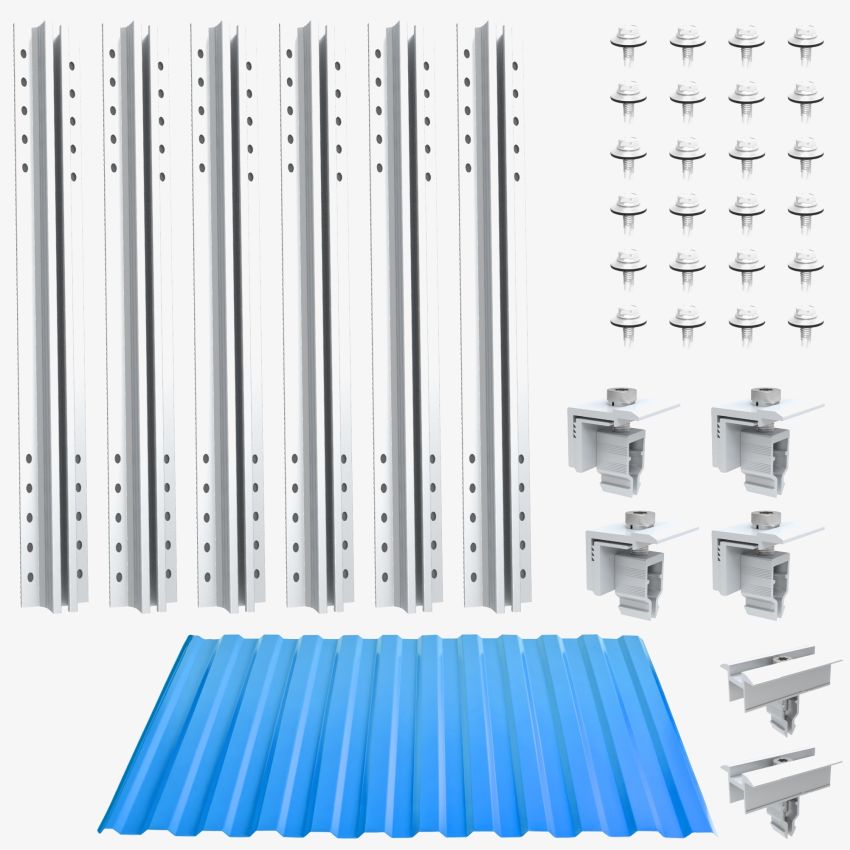

Delivery Scope
- 6x mounting rail 400 mm
- 4x end clamps
- 2x centre clamps
- 24x wood screws
Model Name
NS-HE-TDM402
Number of Packages
1
Suitable Substrates
Trapezoidal sheet roofing
Dimensions aluminium profile
400 x 75 x 26,5 mm
Dimensions profile end clamp
70 x 35 x 54,3 mm
Dimensions profile centre clamp
70 x 39,4 x 49 mm
Product Family
Roof Mounting Kit
