Hanger bolt
Our weather-resistant, stainless steel hanger bolts are completely pre-assembled and are required for fastening aluminium profiles. The aluminium profiles in turn are responsible for holding the solar modules.

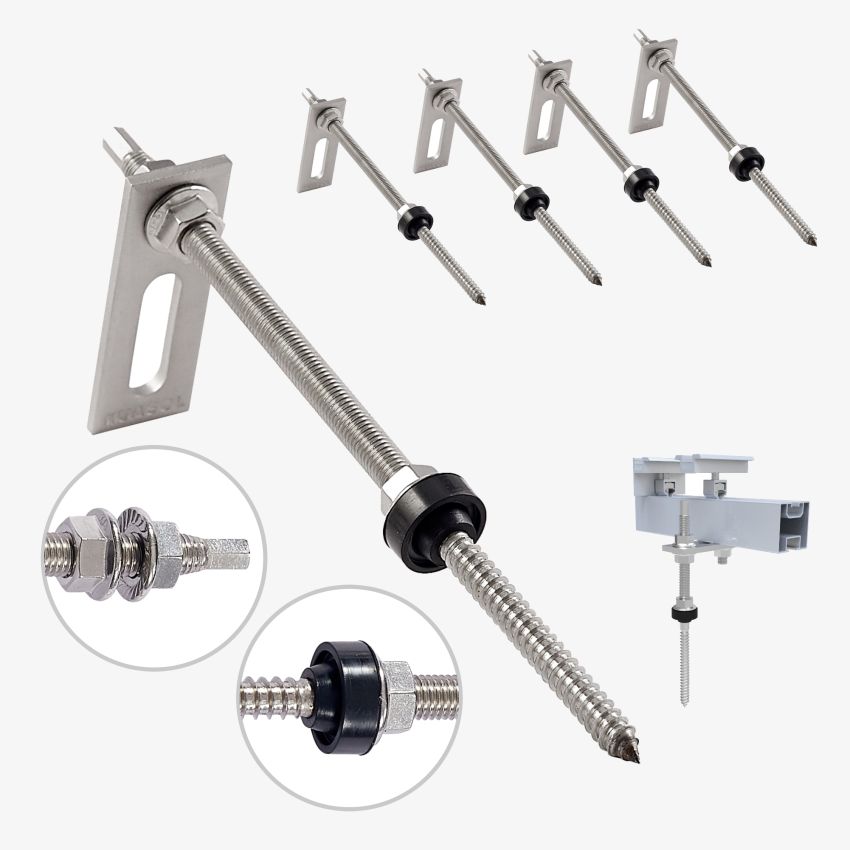

NuaFix hanger bolt in detail
- Material: Stainless steel (SUS304)
- Dimension M10 x 200mm
- Screw head: Hexagon 7mm
- Mounting dimension: 82 x 200mm
- Adapter plate: 82 x 30 x 5mm
- Hole dimension: 11mm / 12 x 29mm
- Incl. EPDM gasket
Weatherproof
Our hanger bolts are made of weather-resistant stainless steel (SUS304) so that your aluminium profiles can be attached to the roof safely and sustainably.
Brand
NuaSol
SKU
4252023109871
Weight
0.83 kgs
Hole size
11mm / 12 x 29mm
Length drill thread
80mm
Length screw thread
85mm
Dimensions adapter plate
82 x 30 x 5mm
Dimensions
M10 x 200mm
Material
Stainless steel (SUS 304)
Model Name
NS-HE-HB4X200
Number of Packages
1
Product Family
Hanger Bolt
